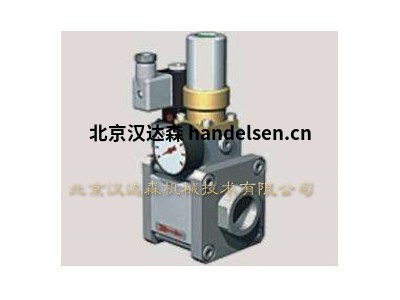

co-ax同轴阀VFK 32
co-ax同轴阀VFK 32
二位三通外部控制式同轴阀
VMK / VFK 32 DR
特性
端口 螺纹 G 1 1/4 - G 1 1/2
法兰 PN 16/40/100
功能 NC
压力范围 0-16 / 0-40 / 0-64 / 0-100 bar
A B max. 100 bar
B A max. 16 bar
A C max. 100 bar
C A max. 100 bar
KV值 18,9 m3/h
介质 气态? 液态? 高粘稠? 凝胶状? 浆状? 高污染?
流向 见压力范围
开关周期 150 1/min
开关时间 打开 100-3000 ms
关闭 100-3000 ms
介质温度 60 °C 直接安装的先导阀
环境温度 50 °C 直接安装的先导阀
重量 VMK 8,5 kg
VFK 10,2 kg
标称电压 Un 24 V DC
Un 230 V 40-60 Hz AC
防护等级 IP65 (P54) DIN 40 050
负载率 ED 100%、
阀门的设计是基于介质和工况的要求.这些因素可能导致设计、密封材料和特性与通用参数表上的规格有所不同.
